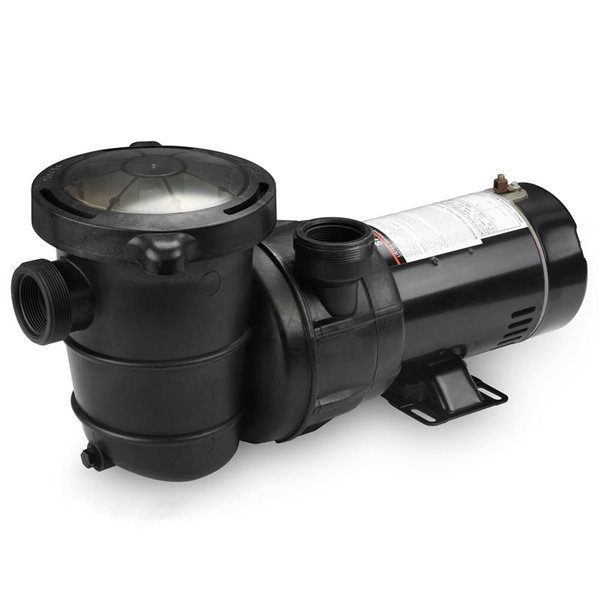

Swimming pool pumps
Application
Filter centrifugal pumps are designed for cleaning swimming pool, They are suitable to transfer high volumes of water (not exceeding 45℃) against low head.
The pump should be installed in an enclosed environment or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor (n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
※ Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request
Operating conditions
※ Liquid temperature up to 45℃
※ Ambient temperature up to 40℃
※ Total suction lift up to 8m
| Component | Construction |
|---|---|
| ※ Pump body: ※ Pump support: ※ Motor housing: ※ Impeller: ※ Motor shaft: ※ Mechanical seal: | Techno-polymer Aluminum Aluminum Techno-polymer AISI304 SS Ceramic/Graphite |
